DiaMension® AXIOM

producticon1
NEW DIMENSION IN DIAMOND MEASUREMENT & MODELING

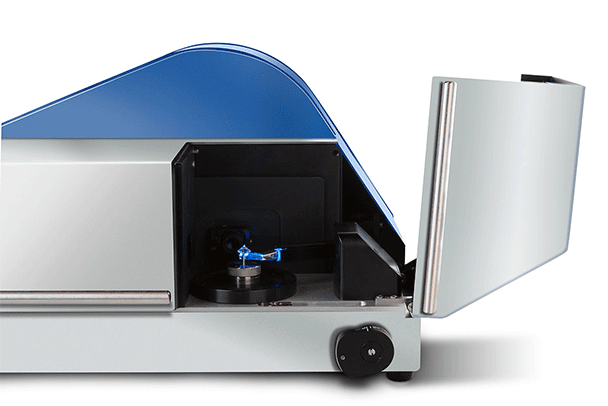

DiaMension AXIOM

SARINE DiaMension® AXIOM是一款比DiaMension® HD更高端的钻石切工比例仪，该系统被Tiffany & Co.沿用至今。

producticon2
Key Benefits

  • Superior accuracy , repeatability & fidelity
  • Full Cut and Symmetry grading
  • 1 Click Fully automated
  • Real in-light microscopic image of the diamond

producticon3
Technical Specifications

  • Stone sizes
    DiaMension™ AXIOM can measure in two accuracy levels - Microscopic and regular HD standard (‘shadows’):
    Lens #2:
    Microscopic 7.5 - 13.0 mm
    HD standard 4.0 - 13.0 mm
    Lens #3:
    Microscopic 4.4 - 8.0 mm
    HD standard 3.0 - 8.0 mm
  • Accuracy
    Linear: ± 10 microns (± 0.01 mm), Angular: ± 0.1 degrees
  • Weight
    25kgs (55.11 lbs)
  • Electrical Inputs
    110/220 VAC, 50/60 Hz
  • Applicable
    Instructor™
